500
Custom
500
Custom
Key Specifications
DIMENSIONS
Total Length
6.32m
Body Length
5.00m
Width
2.10m
Height
2.60m
Headroom
1.95m
Track
1.88m
WEIGHT
Tare
1790kg
GVM
2500kg
CHASSIS
- Burquip Galvanised Single 3 ton axle
- 2.5 ton brakes
- Parabolic suspension with dampers
Single axle

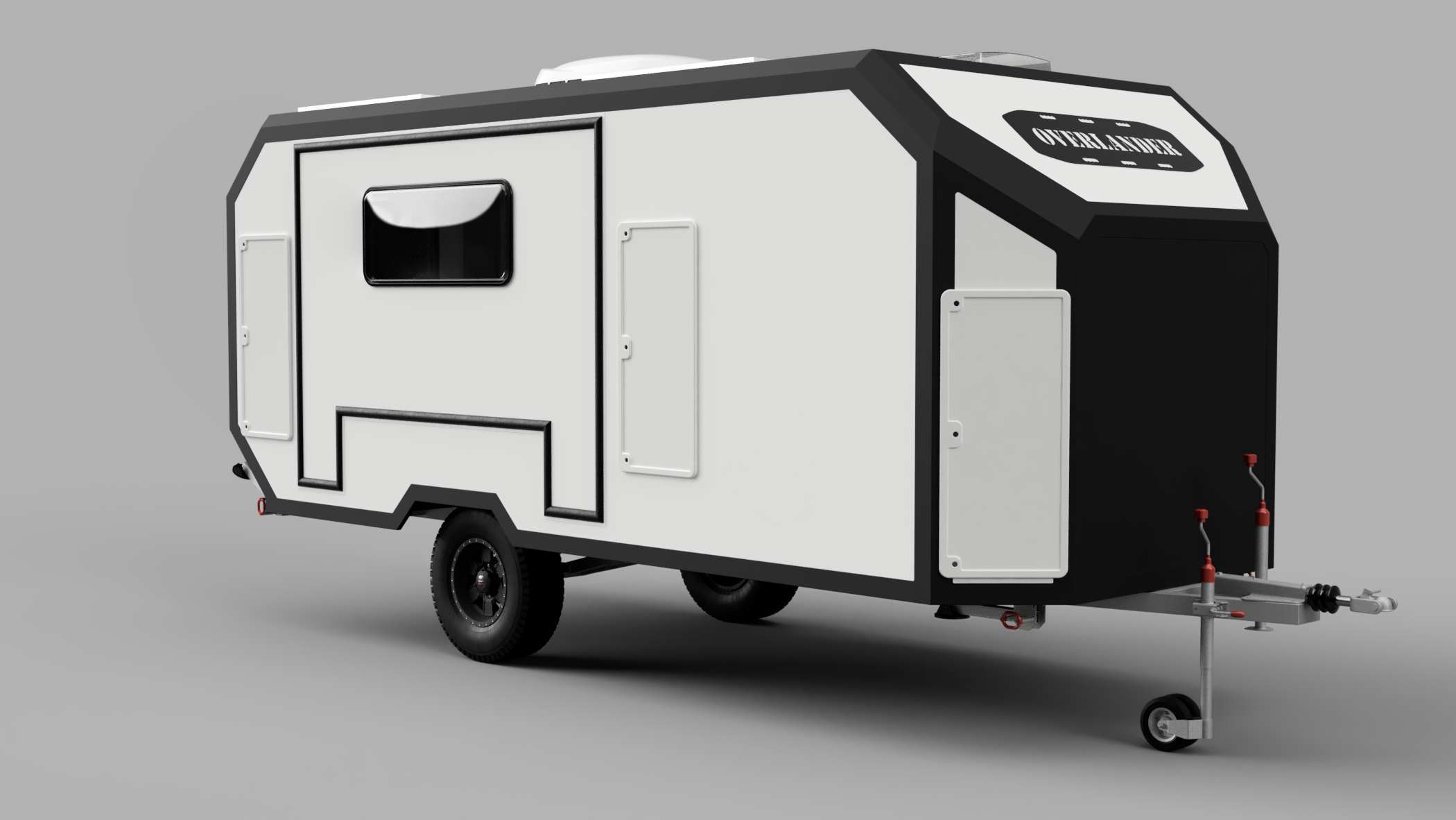

Exterior

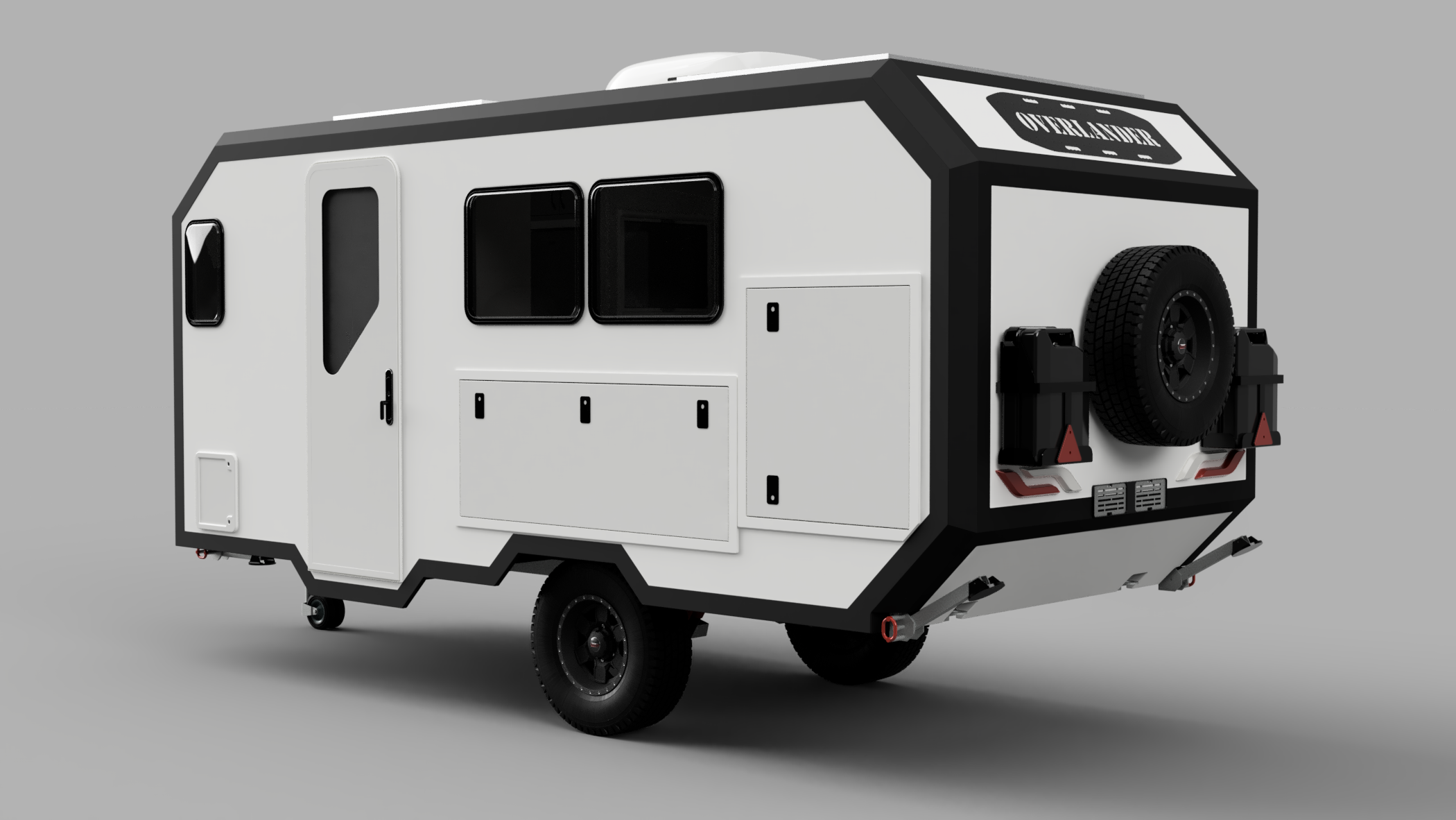

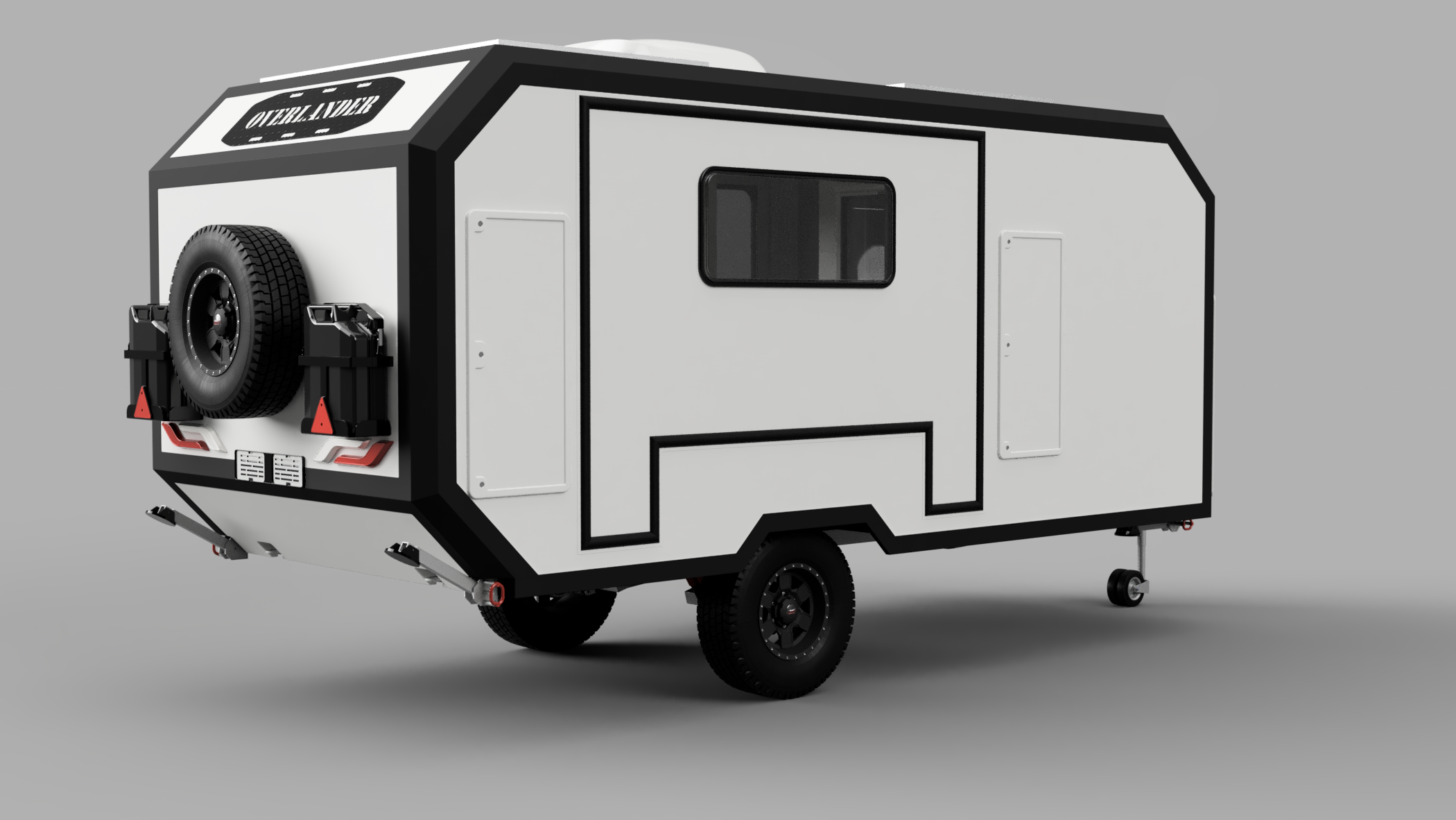

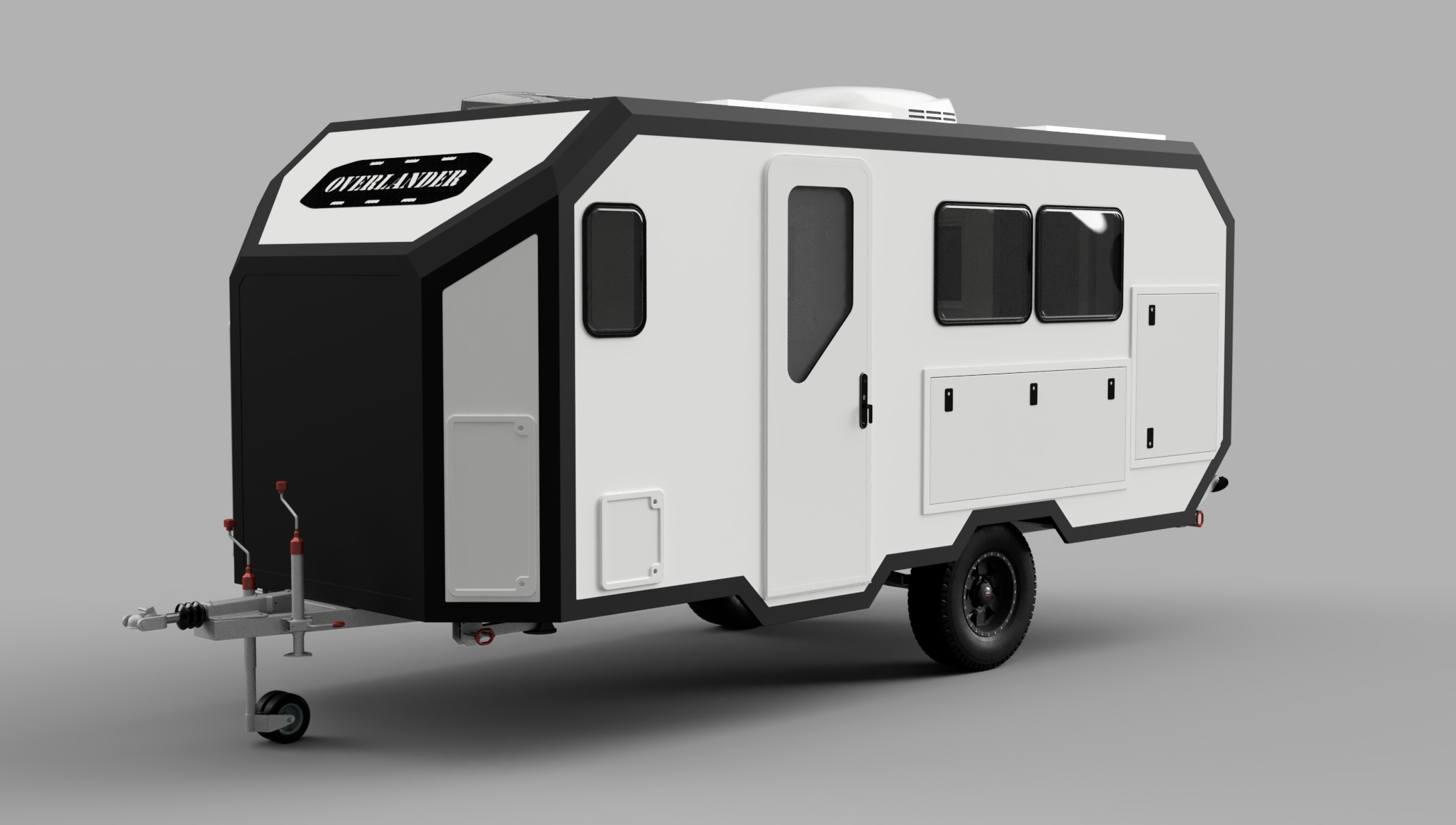

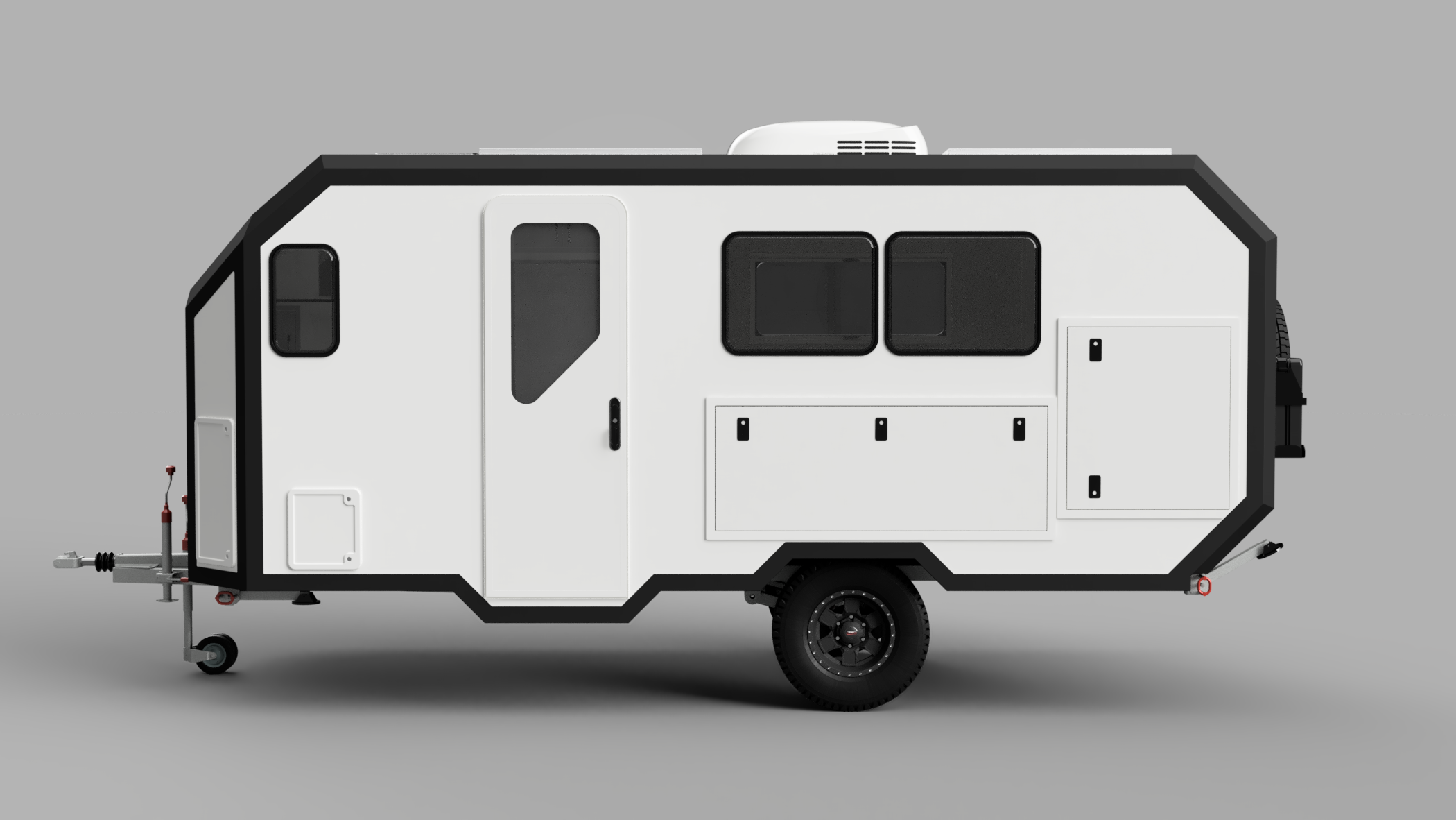

The comfort and luxury you get on the inside of this Overlander 500 Custom camper are matched only by the rugged, all-terrain capabilities of its exterior.
Sitting at a total length of 6,40m (and with a body length of 5.0m) this camper weighs in at 1790kgs. The galvanised steel ladder frame chassis with a three-ton solid axle, German brake system and four body stabilisers.
It’s also holding two slide-out stabilisers, a heavy-duty nose wheel and two recovery points. The model boasts three 16” mags and three 245x70R16 Apollo Apterra tyres. The camper itself is made from Glass Reinforced Plastic (GRP) with a 20mm closed cell foam as the core and then finished off with a Raptor sprayed finish. Six double-glazed windows with integrated blinds and insect screens let in plenty of sunshine. Our specially engineered door system is unique in that it incorporates a triple dead bolted lock system on a high security screen door. The screen door features a stainless-steel powder coated #6 woven mesh with .040 wire. These materials are totally impervious to both large animals and prying tools. This allows you to sleep in safety with the outer door open in hot weather, which has traditionally been a big problem for off-road campers. The door also features our fine mesh bug screen on the outside.

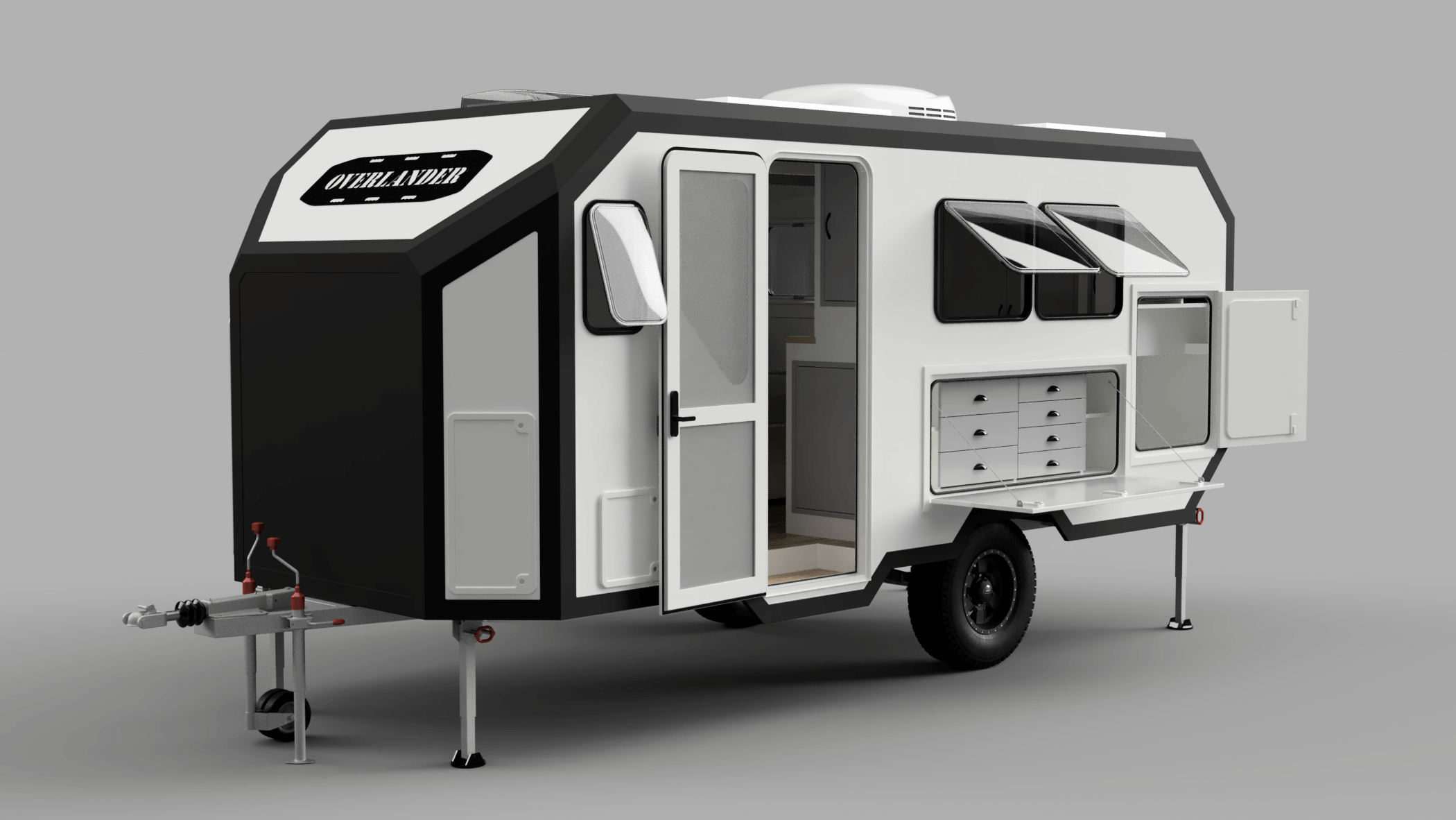

The two entrance steps with a foldaway handrail flank a well-appointed outdoor kitchen area. The wide kitchen locker, with a spacious counter, includes drawers, shelves, and a two-plate gas burner hob. The double sink makes for convenient food preparation and clean up, meaning gourmet meals are easily within your reach. Four extra outdoor storage lockers for tables, chairs and all those camping gadgets.
Extra comfort is provided by a large Aluminised Rip-tech Rally awning, which can be enhanced with our selection of custom extras to suit your exact needs. Choosing two jerry can holders with two jerry cans to prepare for every eventuality. You can even upgrade your exterior with an optional solar setup to keep you powered up in even the most remote locations.
Robust innovation meets seamless relaxation in your Overlander 500 Custom camper.
Interior
Step straight from nature into luxury

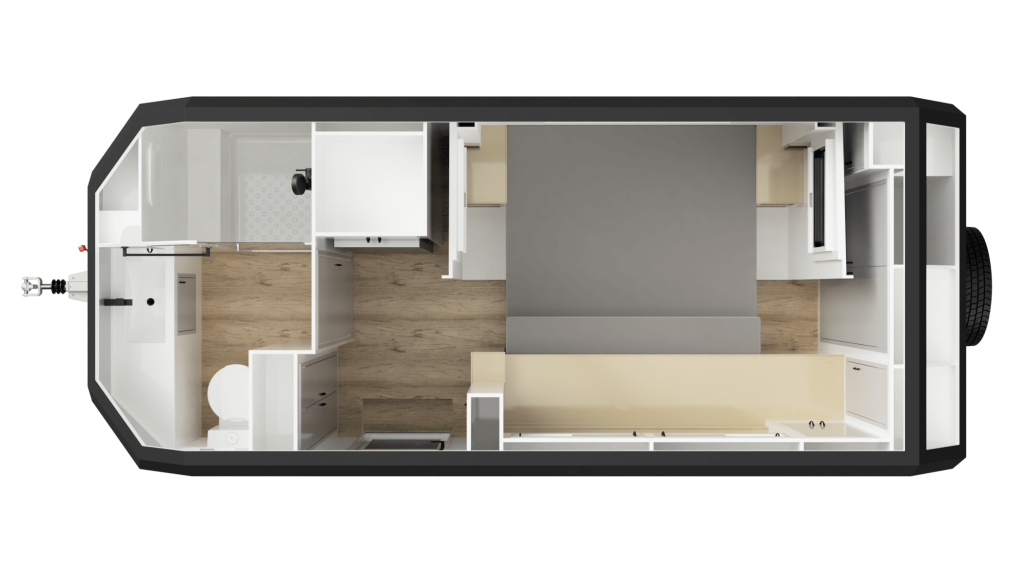

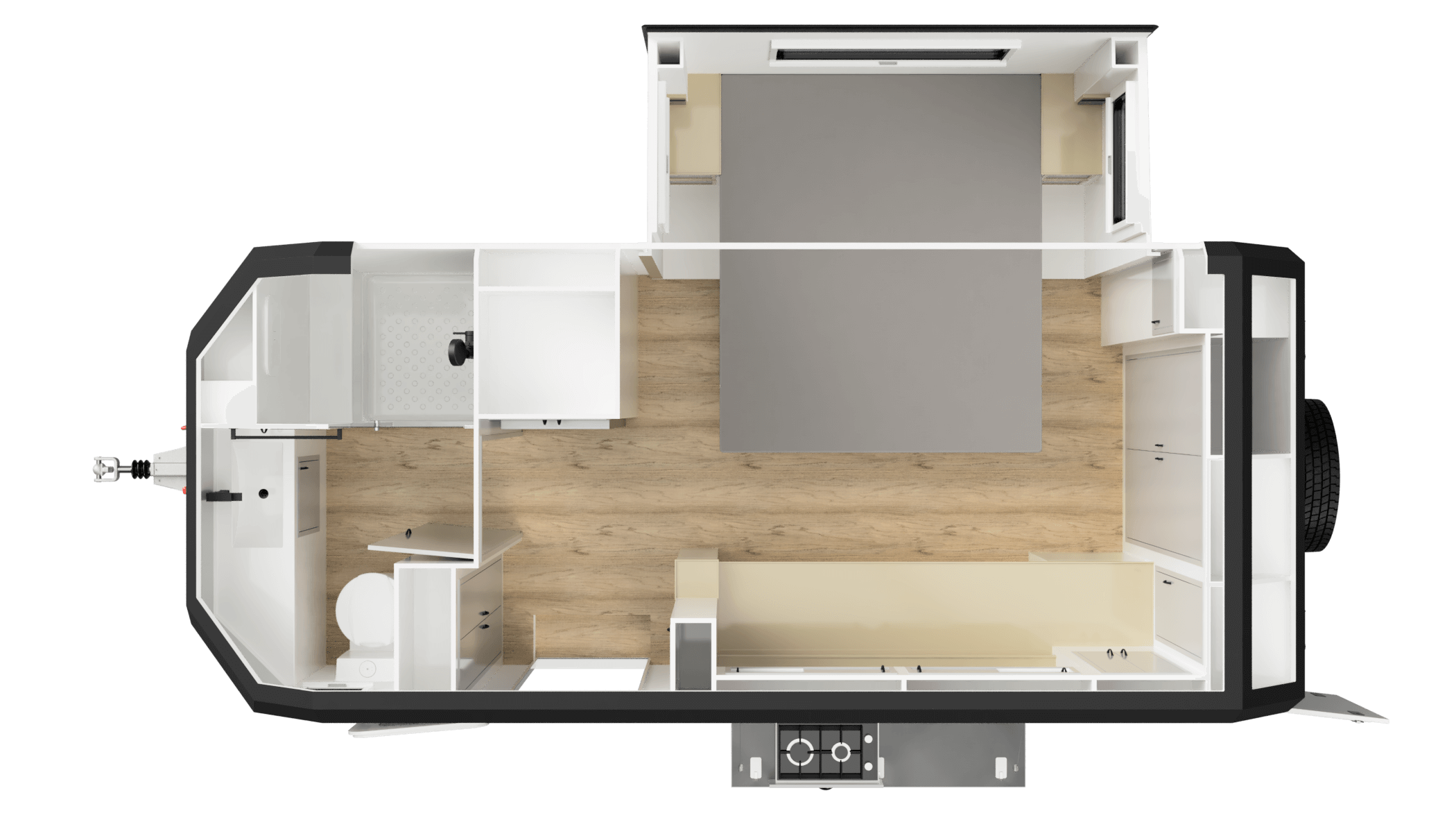

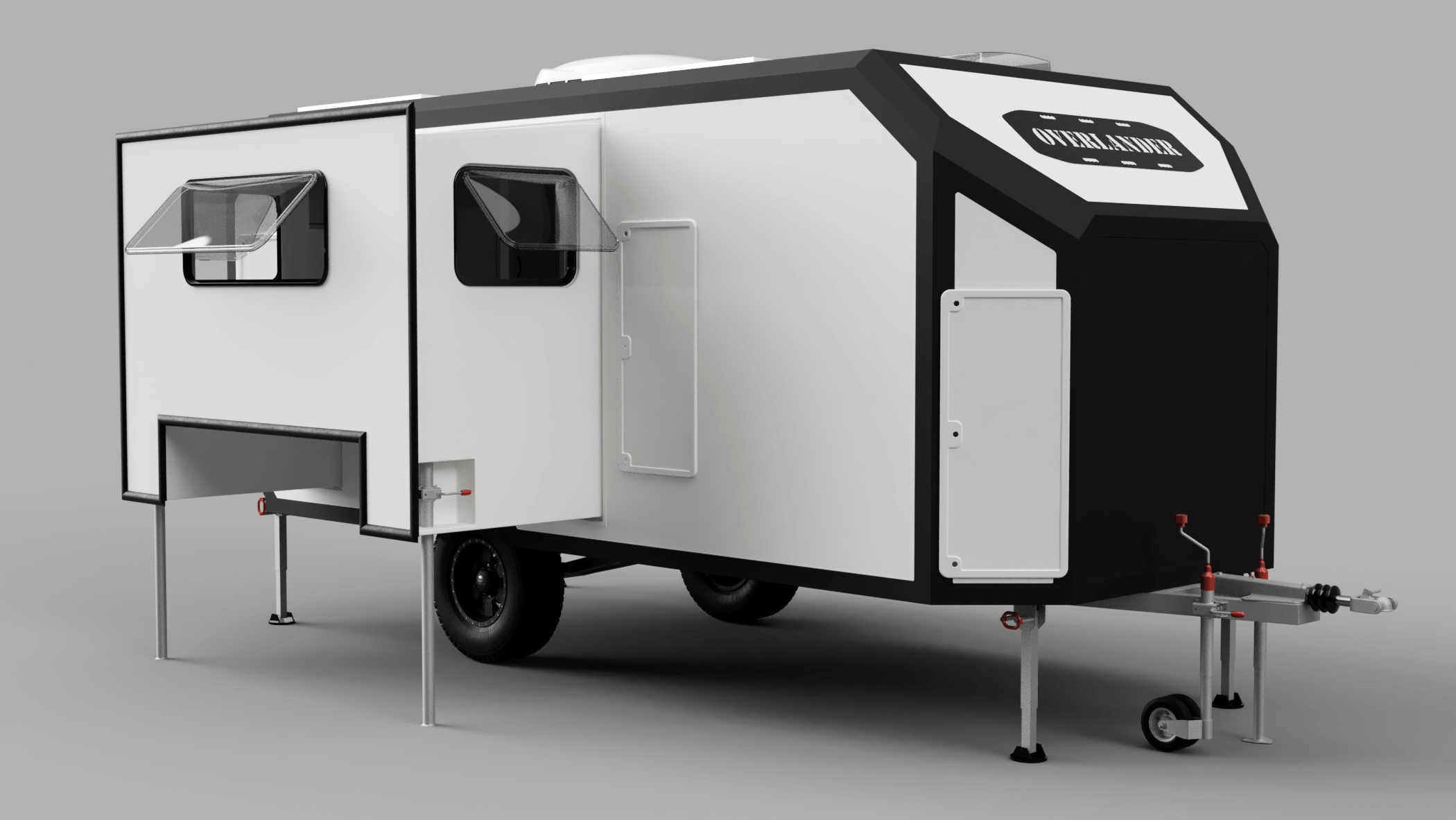

When you open the door to your Overlander 500 Custom camper. Centred around a luxury, queen-sized slide-out bed that’s specifically designed with natural fibres to keep you cool in summer and warm in winter, your cabin boasts an elegantly minimal style. Modern, apartment-style interiors with crisp, curated finishings welcome you into a perfect night’s sleep.
Full of storage space, including marine-standard carpentry cupboards with both hanging and shelving spaces. This camper is ventilated by six windows, two large roof vents and optional 12V fan units, which means that you always have fresh air
The bathroom comes complete with a full-size shower with an integrated seat and door, as well as a bathroom vanity mirror, basin and an electric cassette toilet that is plumbed into the water supply.
We’ve spared no expense here, equipping your Camper with high end fittings so you’re consistently surrounded by luxury.
This model comes standard with a 14L dual gas and electric Hansen geyser and water pressure pump, so you never have to start your day without a steaming hot shower.
This model comes standard with a 223L National Luna fridge-freezer, to keep all your supplies fresh and at their best.
The camper is lit entirely by LED lights, and you’ll always have your electronics charged and ready with access to ample plug points.
Welcome to your home away from home, now on wheels.
